Color Recognition and Tracking
Color detection refers to using computer vision technology to analyze and identify color information in images or videos to determine the color attributes of target objects.
In this section, we will use OriginMan to recognize colors and perform different actions based on different colors.
Color Recognition
Running the Example
After powering on OriginMan, you can start the following command in MoboXterm or VSCode:

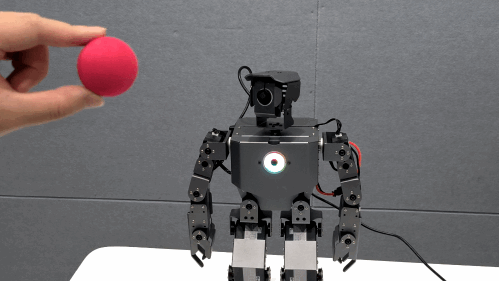

The running result is shown below:
You can see that when the robot detects a red ball/cube from the kit, it will nod its head. When detecting green/blue objects, it will perform a head-shaking action.
Code Implementation
The code implementing this functionality is in originman_color_detect/color_detect.py. The detailed implementation process is as follows:
#!/usr/bin/env python3
# encoding:utf-8
import rclpy
from rclpy.node import Node
import cv2
from cv_bridge import CvBridge
from sensor_msgs.msg import Image
from std_msgs.msg import String
import numpy as np
import threading
import time
import math
import hiwonder.ros_robot_controller_sdk as rrc
from hiwonder.Controller import Controller
import hiwonder.ActionGroupControl as AGC
class ColorDetectNode(Node):
def __init__(self):
super().__init__('color_detect_node')
self.bridge = CvBridge()
# 创建图像发布者
self.image_pub = self.create_publisher(Image, 'image_raw', 10)
# 创建颜色检测信息发布者
self.color_info_pub = self.create_publisher(String, 'color_info', 10)
# 打开摄像头
self.cap = cv2.VideoCapture(0)
if not self.cap.isOpened():
self.get_logger().error("无法打开摄像头")
return
# 机器人控制初始化
self.board = rrc.Board()
self.ctl = Controller(self.board)
self.servo_data = {'servo1': 1500, 'servo2': 1500} # 默认舵机位置
# 初始化舵机位置
self.init_move()
# 颜色检测相关参数
self.size = (320, 240)
self.color_list = []
self.detect_color = 'None'
self.action_finish = True
self.draw_color = (0, 0, 0) # 默认黑色
# 颜色范围 (LAB 空间，需校准)
self.lab_data = {
'red': {'min': [0, 166, 135], 'max': [255, 255, 255]},
'green': {'min': [47, 0, 135], 'max': [255, 110, 255]},
'blue': {'min': [0, 0, 0], 'max': [255, 146, 120]}
}
# 颜色对应的 RGB 显示值
self.range_rgb = {
'red': (0, 0, 255),
'green': (0, 255, 0),
'blue': (255, 0, 0),
'black': (0, 0, 0)
}
# 定时器用于图像处理和发布
self.timer = self.create_timer(0.1, self.process_image)
# 启动动作控制线程
self.action_thread = threading.Thread(target=self.move)
self.action_thread.daemon = True
self.action_thread.start()
self.get_logger().info("颜色识别节点启动")
def init_move(self):
"""初始化舵机位置"""
self.ctl.set_pwm_servo_pulse(1, 1500, 500)
self.ctl.set_pwm_servo_pulse(2, self.servo_data['servo2'], 500)
self.get_logger().info("舵机初始化完成")
def get_area_max_contour(self, contours):
"""找出面积最大的轮廓"""
max_area = 0
max_contour = None
for c in contours:
area = math.fabs(cv2.contourArea(c))
if area > max_area and area > 50: # 最小面积阈值
max_area = area
max_contour = c
return max_contour, max_area
def color_detect(self, img):
"""颜色检测"""
img_h, img_w = img.shape[:2]
frame_resize = cv2.resize(img, self.size, interpolation=cv2.INTER_NEAREST)
frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)
frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB)
max_area = 0
color_area_max = None
area_max_contour_max = None
center_x, center_y, radius = -1, -1, 0 # 初始化默认值
if self.action_finish:
for color_name in self.lab_data:
mask = cv2.inRange(frame_lab,
tuple(self.lab_data[color_name]['min']),
tuple(self.lab_data[color_name]['max']))
eroded = cv2.erode(mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))
dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))
contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2]
area_max_contour, area_max = self.get_area_max_contour(contours)
if area_max_contour is not None and area_max > max_area:
max_area = area_max
color_area_max = color_name
area_max_contour_max = area_max_contour
if max_area > 200: # 检测到有效目标
(center_x_small, center_y_small), radius_small = cv2.minEnclosingCircle(area_max_contour_max)
center_x = int(center_x_small * img_w / self.size[0])
center_y = int(center_y_small * img_h / self.size[1])
radius = int(radius_small * img_w / self.size[0])
cv2.circle(img, (center_x, center_y), radius, self.range_rgb[color_area_max], 2)
if color_area_max == 'red':
color = 1
elif color_area_max == 'green':
color = 2
elif color_area_max == 'blue':
color = 3
else:
color = 0
self.color_list.append(color)
if len(self.color_list) == 3: # 多次判断
color = int(round(np.mean(np.array(self.color_list))))
self.color_list = []
if color == 1:
self.detect_color = 'red'
self.draw_color = self.range_rgb["red"]
elif color == 2:
self.detect_color = 'green'
self.draw_color = self.range_rgb["green"]
elif color == 3:
self.detect_color = 'blue'
self.draw_color = self.range_rgb["blue"]
else:
self.detect_color = 'None'
self.draw_color = self.range_rgb["black"]
self.get_logger().info(f"识别到颜色: {self.detect_color}")
else:
self.detect_color = 'None'
self.draw_color = self.range_rgb["black"]
cv2.putText(img, "Color: " + self.detect_color, (10, img_h - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, self.draw_color, 2)
return center_x, center_y, radius
def move(self):
"""机器人动作控制线程"""
while True:
if rclpy.ok():
if self.detect_color != 'None':
self.action_finish = False
if self.detect_color == 'red':
self.get_logger().info("检测到红色，执行点头动作")
self.ctl.set_pwm_servo_pulse(1, 1800, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(1, 1200, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(1, 1800, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(1, 1200, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(1, 1500, 100)
time.sleep(0.1)
elif self.detect_color in ['green', 'blue']:
self.get_logger().info("检测到绿色或蓝色，执行摇头动作")
self.ctl.set_pwm_servo_pulse(2, 1800, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(2, 1200, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(2, 1800, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(2, 1200, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(2, 1500, 100)
time.sleep(0.1)
self.detect_color = 'None'
self.draw_color = self.range_rgb["black"]
time.sleep(1)
self.action_finish = True
else:
time.sleep(0.01)
else:
time.sleep(0.01)
def process_image(self):
"""处理图像并发布"""
ret, frame = self.cap.read()
if not ret:
self.get_logger().error("无法读取图像帧")
return
# 颜色检测
center_x, center_y, radius = self.color_detect(frame)
color_msg = String()
color_msg.data = f"Color: {self.detect_color}, X: {center_x}, Y: {center_y}, Radius: {radius}"
self.color_info_pub.publish(color_msg)
# 发布图像
self.image_pub.publish(self.bridge.cv2_to_imgmsg(frame, "bgr8"))
def __del__(self):
if self.cap.isOpened():
self.cap.release()
def main(args=None):
rclpy.init(args=args)
node = ColorDetectNode()
try:
rclpy.spin(node)
except KeyboardInterrupt:
node.get_logger().info("节点被中断")
node.destroy_node()
rclpy.shutdown()
if __name__ == '__main__':
main()
Color Tracking
Running the Example
After powering on OriginMan, you can start the following command in MoboXterm or VSCode:
The running result is shown below:
You can see that when the robot detects a red ball or red cube from the kit, its head will track and rotate along with the ball.
Code Implementation
The code implementing this functionality is in originman_color_detect/color_track.py. The detailed implementation process is as follows:
#!/usr/bin/env python3
# encoding:utf-8
import rclpy
from rclpy.node import Node
import cv2
from cv_bridge import CvBridge
from sensor_msgs.msg import Image
from std_msgs.msg import String
import numpy as np
import threading
import time
import math
import hiwonder.ros_robot_controller_sdk as rrc
from hiwonder.Controller import Controller
import hiwonder.ActionGroupControl as AGC
class ColorDetectNode(Node):
def __init__(self):
super().__init__('color_detect_node')
self.bridge = CvBridge()
# 创建图像发布者
self.image_pub = self.create_publisher(Image, 'image_raw', 10)
# 创建颜色检测信息发布者
self.color_info_pub = self.create_publisher(String, 'color_info', 10)
# 打开摄像头
self.cap = cv2.VideoCapture(0)
if not self.cap.isOpened():
self.get_logger().error("无法打开摄像头")
return
# 机器人控制初始化
self.board = rrc.Board()
self.ctl = Controller(self.board)
self.servo_data = {'servo1': 1500, 'servo2': 1500} # 默认舵机位置
# 初始化舵机位置
self.init_move()
# 颜色检测相关参数
self.size = (320, 240)
self.color_list = []
self.detect_color = 'None'
self.action_finish = True
self.draw_color = (0, 0, 0) # 默认黑色
# 颜色范围 (LAB 空间，需校准)
self.lab_data = {
'red': {'min': [0, 166, 135], 'max': [255, 255, 255]},
'green': {'min': [47, 0, 135], 'max': [255, 110, 255]},
'blue': {'min': [0, 0, 0], 'max': [255, 146, 120]}
}
# 颜色对应的 RGB 显示值
self.range_rgb = {
'red': (0, 0, 255),
'green': (0, 255, 0),
'blue': (255, 0, 0),
'black': (0, 0, 0)
}
# 定时器用于图像处理和发布
self.timer = self.create_timer(0.1, self.process_image)
# 启动动作控制线程
self.action_thread = threading.Thread(target=self.move)
self.action_thread.daemon = True
self.action_thread.start()
self.get_logger().info("颜色识别节点启动")
def init_move(self):
"""初始化舵机位置"""
self.ctl.set_pwm_servo_pulse(1, 1500, 500)
self.ctl.set_pwm_servo_pulse(2, self.servo_data['servo2'], 500)
self.get_logger().info("舵机初始化完成")
def get_area_max_contour(self, contours):
"""找出面积最大的轮廓"""
max_area = 0
max_contour = None
for c in contours:
area = math.fabs(cv2.contourArea(c))
if area > max_area and area > 50: # 最小面积阈值
max_area = area
max_contour = c
return max_contour, max_area
def color_detect(self, img):
"""颜色检测"""
img_h, img_w = img.shape[:2]
frame_resize = cv2.resize(img, self.size, interpolation=cv2.INTER_NEAREST)
frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)
frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB)
max_area = 0
color_area_max = None
area_max_contour_max = None
center_x, center_y, radius = -1, -1, 0 # 初始化默认值
if self.action_finish:
for color_name in self.lab_data:
mask = cv2.inRange(frame_lab,
tuple(self.lab_data[color_name]['min']),
tuple(self.lab_data[color_name]['max']))
eroded = cv2.erode(mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))
dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))
contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2]
area_max_contour, area_max = self.get_area_max_contour(contours)
if area_max_contour is not None and area_max > max_area:
max_area = area_max
color_area_max = color_name
area_max_contour_max = area_max_contour
if max_area > 200: # 检测到有效目标
(center_x_small, center_y_small), radius_small = cv2.minEnclosingCircle(area_max_contour_max)
center_x = int(center_x_small * img_w / self.size[0])
center_y = int(center_y_small * img_h / self.size[1])
radius = int(radius_small * img_w / self.size[0])
cv2.circle(img, (center_x, center_y), radius, self.range_rgb[color_area_max], 2)
if color_area_max == 'red':
color = 1
elif color_area_max == 'green':
color = 2
elif color_area_max == 'blue':
color = 3
else:
color = 0
self.color_list.append(color)
if len(self.color_list) == 3: # 多次判断
color = int(round(np.mean(np.array(self.color_list))))
self.color_list = []
if color == 1:
self.detect_color = 'red'
self.draw_color = self.range_rgb["red"]
elif color == 2:
self.detect_color = 'green'
self.draw_color = self.range_rgb["green"]
elif color == 3:
self.detect_color = 'blue'
self.draw_color = self.range_rgb["blue"]
else:
self.detect_color = 'None'
self.draw_color = self.range_rgb["black"]
self.get_logger().info(f"识别到颜色: {self.detect_color}")
else:
self.detect_color = 'None'
self.draw_color = self.range_rgb["black"]
cv2.putText(img, "Color: " + self.detect_color, (10, img_h - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, self.draw_color, 2)
return center_x, center_y, radius
def move(self):
"""机器人动作控制线程"""
while True:
if rclpy.ok():
if self.detect_color != 'None':
self.action_finish = False
if self.detect_color == 'red':
self.get_logger().info("检测到红色，执行点头动作")
self.ctl.set_pwm_servo_pulse(1, 1800, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(1, 1200, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(1, 1800, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(1, 1200, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(1, 1500, 100)
time.sleep(0.1)
elif self.detect_color in ['green', 'blue']:
self.get_logger().info("检测到绿色或蓝色，执行摇头动作")
self.ctl.set_pwm_servo_pulse(2, 1800, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(2, 1200, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(2, 1800, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(2, 1200, 200)
time.sleep(0.2)
self.ctl.set_pwm_servo_pulse(2, 1500, 100)
time.sleep(0.1)
self.detect_color = 'None'
self.draw_color = self.range_rgb["black"]
time.sleep(1)
self.action_finish = True
else:
time.sleep(0.01)
else:
time.sleep(0.01)
def process_image(self):
"""处理图像并发布"""
ret, frame = self.cap.read()
if not ret:
self.get_logger().error("无法读取图像帧")
return
# 颜色检测
center_x, center_y, radius = self.color_detect(frame)
color_msg = String()
color_msg.data = f"Color: {self.detect_color}, X: {center_x}, Y: {center_y}, Radius: {radius}"
self.color_info_pub.publish(color_msg)
# 发布图像
self.image_pub.publish(self.bridge.cv2_to_imgmsg(frame, "bgr8"))
def __del__(self):
if self.cap.isOpened():
self.cap.release()
def main(args=None):
rclpy.init(args=args)
node = ColorDetectNode()
try:
rclpy.spin(node)
except KeyboardInterrupt:
node.get_logger().info("节点被中断")
node.destroy_node()
rclpy.shutdown()
if __name__ == '__main__':
main()
